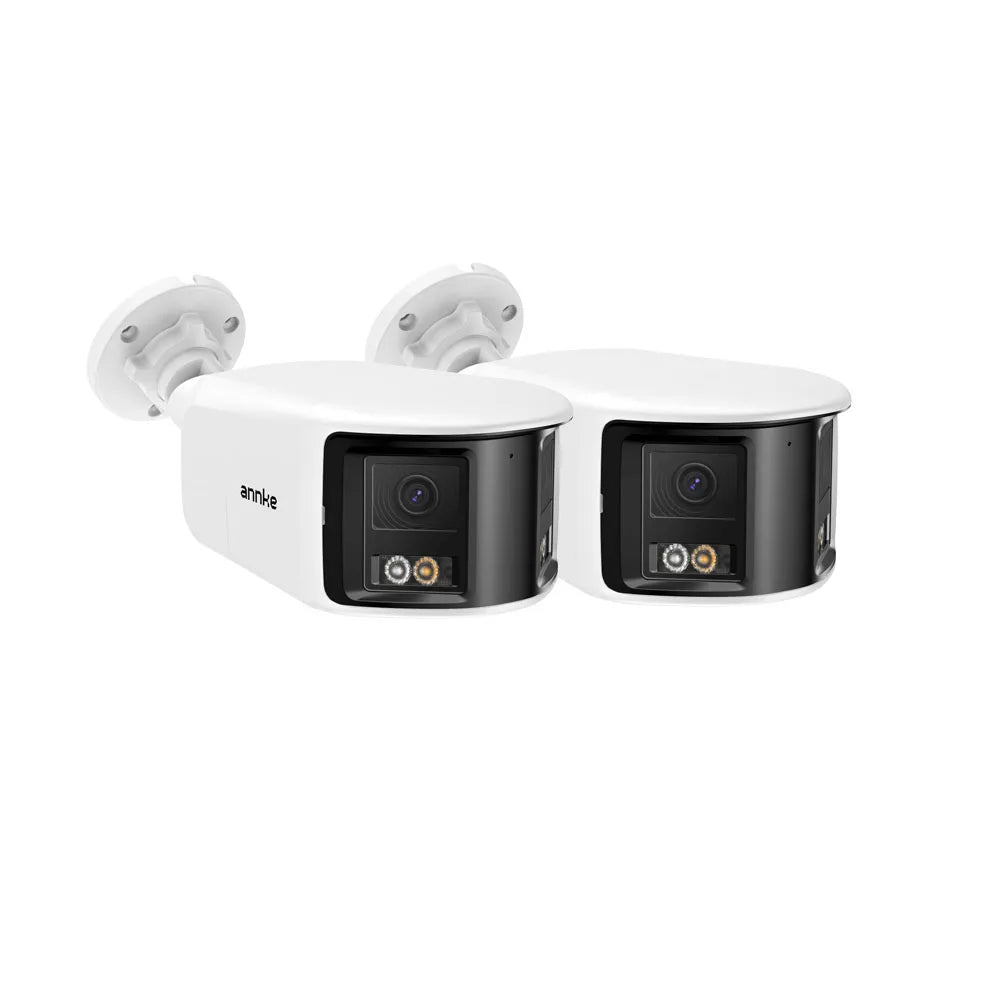

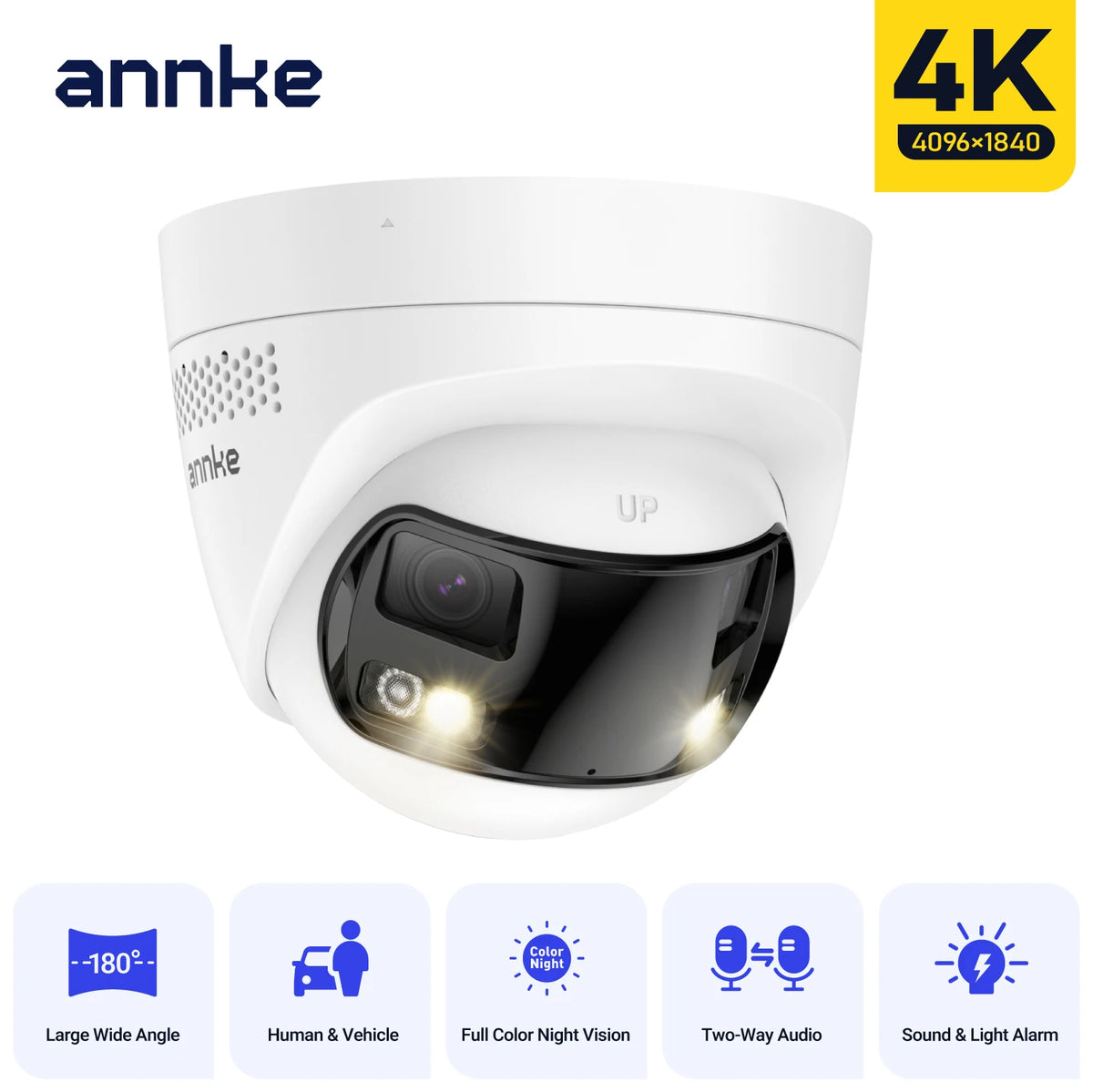

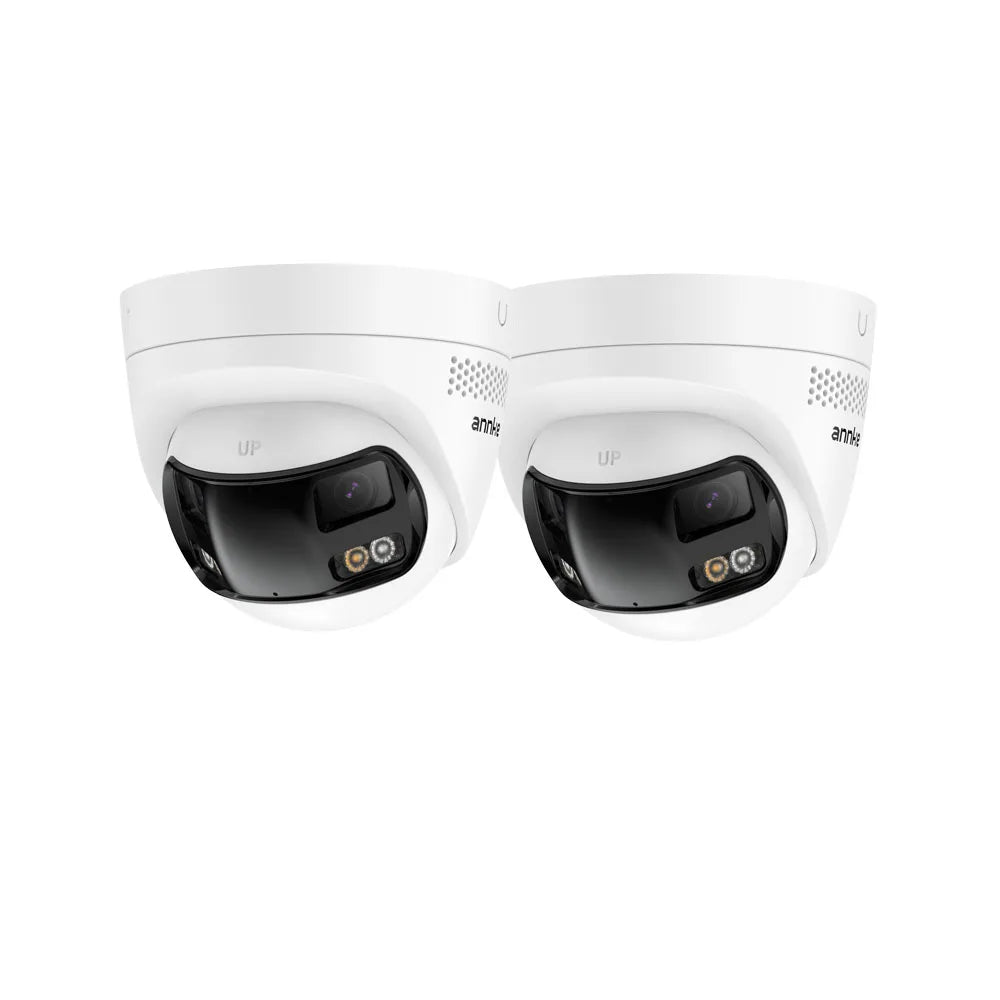

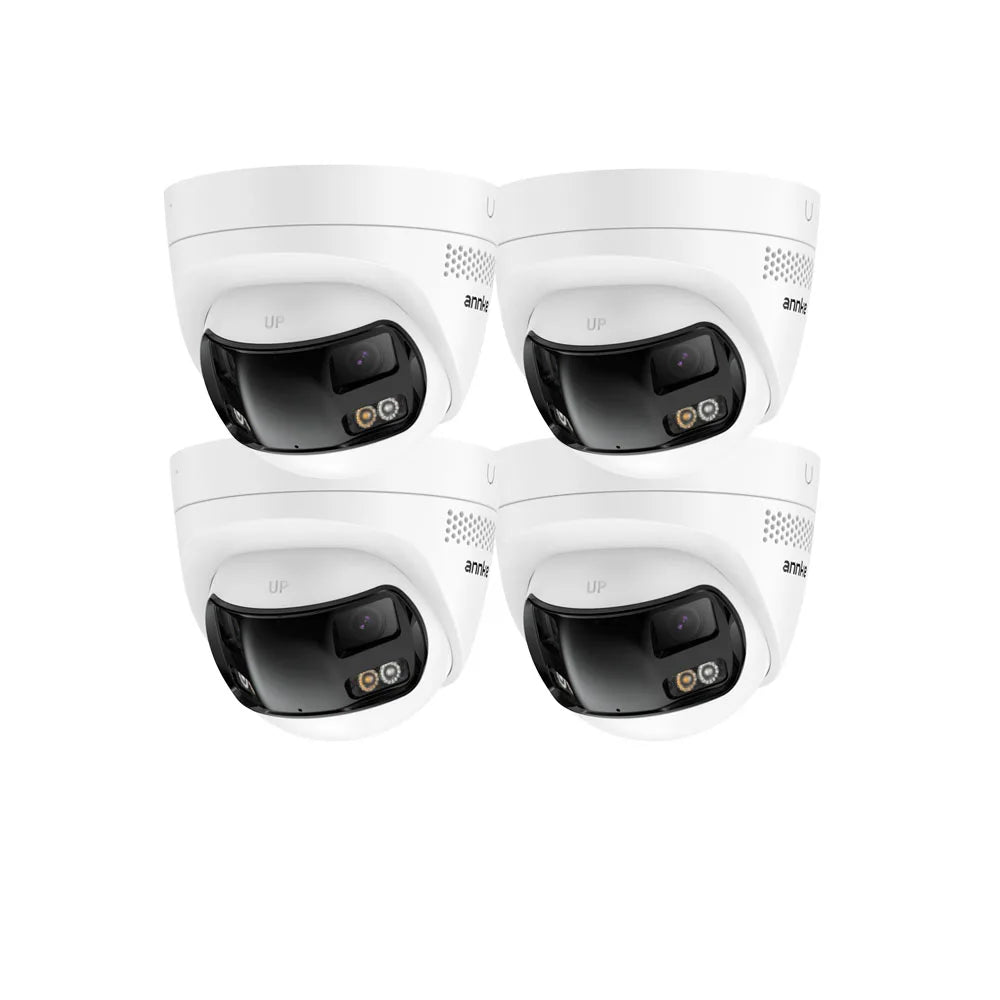

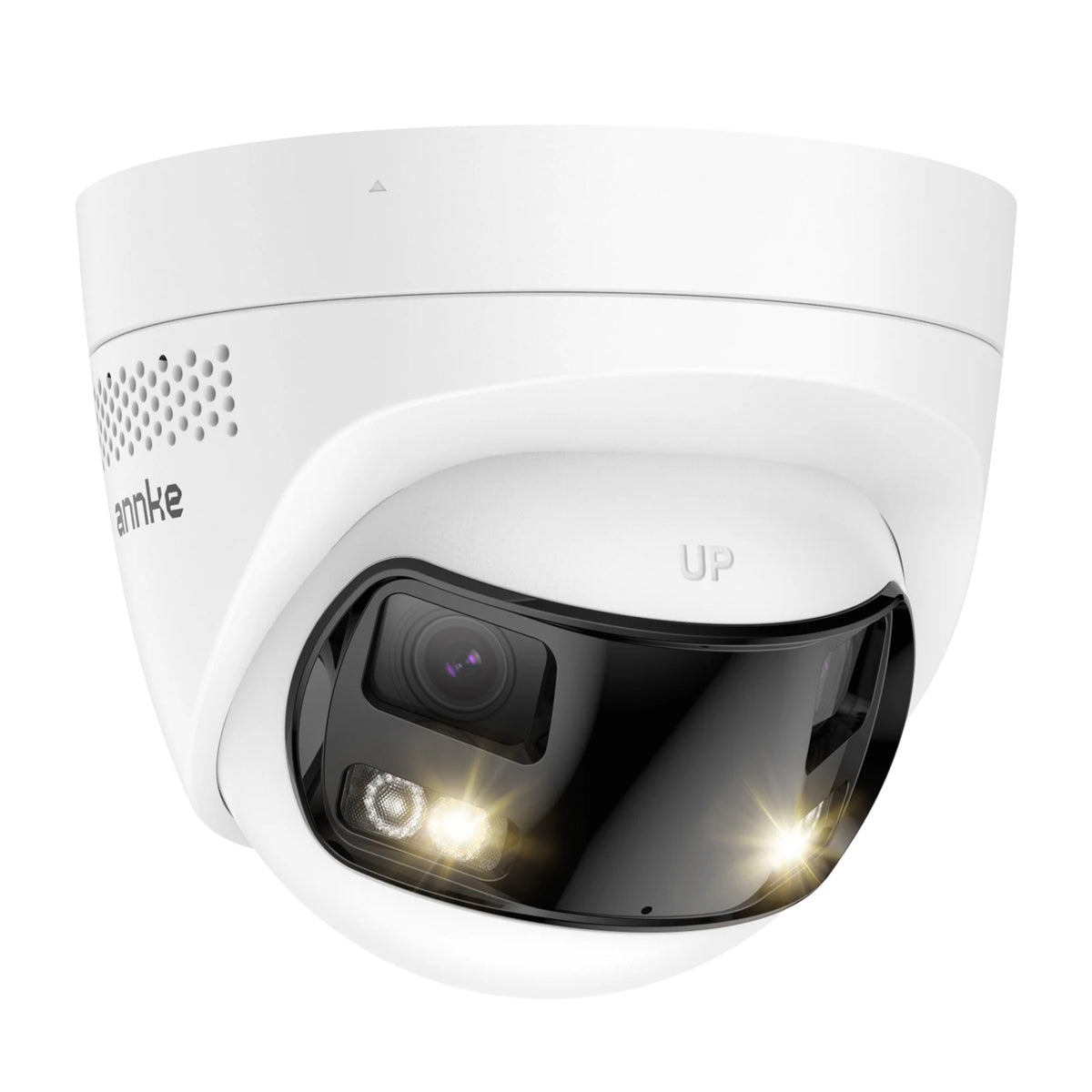

Annke 8MP Panoramic Security Camera With AI Detection And IP67
Annke 8MP Panoramic Security Camera With AI Detection And IP67
Couldn't load pickup availability
You secure wider perimeters without blind spots thanks to this dual-lens surveillance camera’s native 180-degree panoramic feed.
- You capture crisp 8MP (4096×1860) footage day or night using two 1/2.4” progressive scan CMOS sensors paired with 2 mm lenses.
- Your smart motion detection isolates humans and vehicles while intelligent hybrid lighting transitions seamlessly from covert infrared to active white illumination across 30-meter ranges.
- You install the unit anywhere indoors or outdoors protected by an IP67-rated enclosure that withstands temperatures from -30°C to 60°C on either PoE or 12 V DC.
- You monitor live feeds remotely, deter intruders with synchronized white light and audio warnings, and preserve extensive history on a single 512 GB microSD slot via H.265+ encoding.
Model Number |
I91ET |
|
IP Camera | ||
Camera |
Image sensor |
2×1/2.4" Progressive Scan CMOS |
Max resolution |
4096 x 1860 |
|
Main Stream |
50 Hz: 20 fps (4096 x 1860) |
|
Sub Stream |
50 Hz：20 fps（1200 × 536, 960 × 432） |
|
Video compression |
Main Stream: H.265+/H.265/H.264+/H.264 |
|
Video Bit Rate |
32 Kbps to 16 Mbps |
|
Built-in Microphone |
Built-in Microphone, record with audio |
|
Audio Compression |
G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
|
Built-in Speaker |
Yes, max. sound pressure: 10 cm: 97 dB |
|
Lens |
Dual lens: 2 mm |
|
Min. Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON) |
|
Angle of View |
Horizontal FOV: 180°, Vertical FOV: 77° |
|
Supplement Light Type |
Smart light, white light, IR light |
|
Supplement Light Range |
White light up to 30 m, IR light up to 30m |
|
Motion detection 2.0 |
Supoort, include human & vehicle detection |
|
Image Parameters Switch |
Yes |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Wide Dynamic Range |

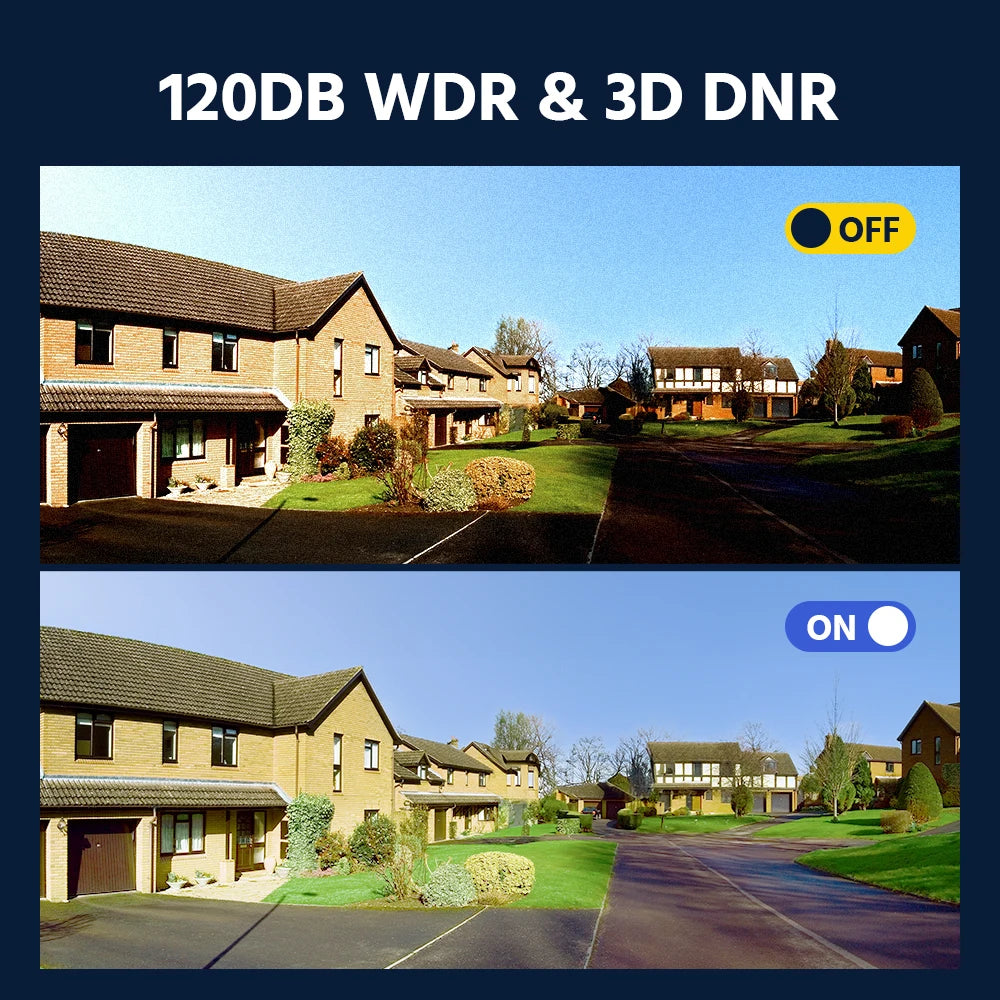

120dB WDR |
|
Network Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPV4, IPV6, IGMP, UDP, QoS, FTP, SMTP |
|
API |
Support Open Network Video Interface protocol, version 19.12 |
|
Basic Event |
Motion detection (support human and vehicle detection), video tampering, exception detection |
|
Audio Alarm |
Support(Parameters adjustable,support custom audio, can be triggered from APP) |
|
Flashing Alarm |
White light, frequency adjustable, can be triggered from APP |
|
Region of Interest (ROI) |
1 fixed region for main stream |
|
Privacy Mask |
4 programmable polygon privacy masks |
|
General Function |
Rotate, remote access, IP Address Filter |
|
General |
Housing |
Metal&Plastic, white color |
Operating Power |
PoE (802.3af)，max 11.5W, |
|
Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
Storage |
Built-in micro SD/SDHC/SDXC slot, up to 512 GB |
|
Hardware Reset |
Yes |
|
Operating Temperature |
-22 °F – 140 °F /-30 °C – 60 °C |
|
Indoor/Outdoor |
Indoor/Outdoor |
|
Weatherproof Rating |

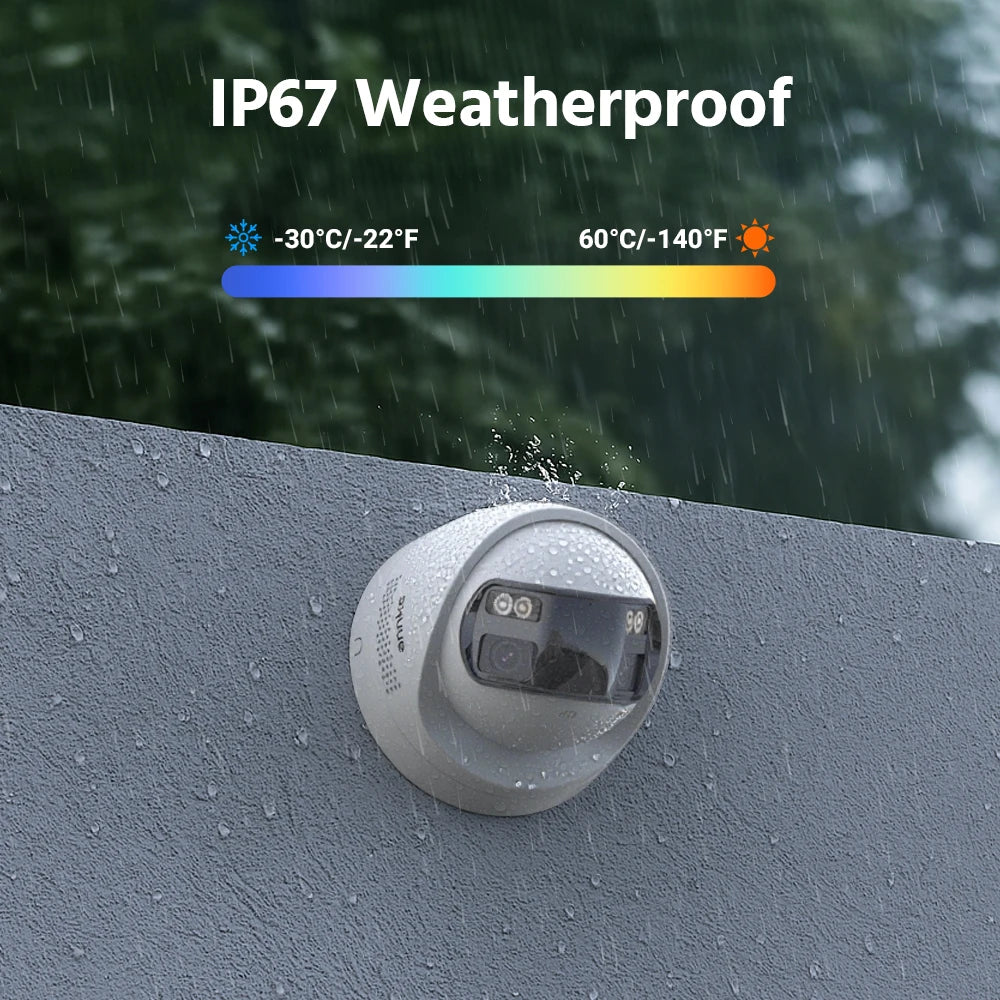

IP67 |
|
Dimension (L x W x H) |
Ø 130.1 mm × 109.1 mm (Ø 5.1" × 4.3") |
|
Weight |
Approx. 586 g (1.3 lb.) |
|
Model Number |
I91EV |
|
IP Camera | ||
Camera |
Image sensor |
2×1/2.4" Progressive Scan CMOS |
Max resolution |
4096 x 1860 |
|
Main Stream |
50 Hz: 20 fps (4096 x 1860) |
|
Sub Stream |
50 Hz：20 fps（1200 × 536, 960 × 432） |
|
Video compression |
Main Stream: H.265+/H.265/H.264+/H.264 |
|
Video Bit Rate |
32 Kbps to 16 Mbps |
|
Built-in Microphone |
Built-in Microphone, record with audio |
|
Audio Compression |
G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
|
Built-in Speaker |
Yes, max. sound pressure: 10 cm: 97 dB |
|
Lens |
Dual lens: 2 mm |
|
Min. Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON) |
|
Angle of View |
Horizontal FOV: 180°, Vertical FOV: 77° |
|
Supplement Light Type |
Smart light, white light, IR light |
|
Supplement Light Range |
White light up to 30 m, IR light up to 30m |
|
Motion detection 2.0 |
Supoort, include human & vehicle detection |
|
Image Parameters Switch |
Yes |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Wide Dynamic Range |
120dB WDR |
|
Network Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPV4, IPV6, IGMP, UDP, QoS, FTP, SMTP |
|
API |
Support Open Network Video Interface protocol, version 19.12 |
|
Basic Event |
Motion detection (support human and vehicle detection), video tampering, exception detection |
|
Audio Alarm |
Support(Parameters adjustable,support custom audio, can be triggered from APP) |
|
Flashing Alarm |
White light, frequency adjustable, can be triggered from APP |
|
Region of Interest (ROI) |
1 fixed region for main stream |
|
Privacy Mask |
4 programmable polygon privacy masks |
|
General Function |
Rotate, remote access, IP Address Filter |
|
General |
Housing |
Metal&Plastic, white color |
Operating Power |
PoE (802.3af)，max 11.5W, |
|
Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
Storage |
Built-in micro SD/SDHC/SDXC slot, up to 512 GB |
|
Hardware Reset |
Yes |
|
Operating Temperature |
-22 °F – 140 °F /-30 °C – 60 °C |
|
Indoor/Outdoor |
Indoor/Outdoor |
|
Weatherproof Rating |
IP67 |
|
Dimension (L x W x H) |
103.6 mm × 76 mm × 234.5 mm (4.1" × 3.0" × 9.2") |
|
Weight |
Approx. 560 g (1.2 lb.) |
|
